Series 9
S9 – ‘flamenco version’

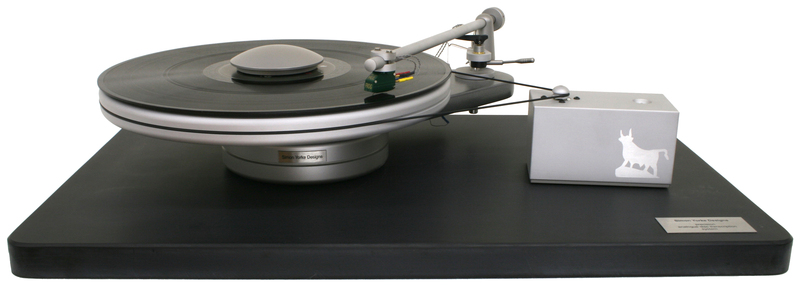

The S9 record player is a direct descendant of our S7 precision analogue disc transcription system – itself part-developed for the United States Government, Library of Congress Audio Preservation Facility – and a sibling of the S10 – yet simpler and further reduced. It is our entry-level record player – an introduction to ‘serious analogue playback’ – for those who simply wish to enjoy the pleasures of analogue reproduction without the nonsense of ‘hi-fi’ and its associated propaganda.
The unit comprises a turntable chassis, bearing and platter, armboard, unipivot tonearm and free-standing motor control unit – complete with remote low-voltage power supply and offering 33,3 and 45,0 r.p.m. switched speeds, coupled to pre-set potentiometers which provide fine calibration adjustment. With the provision of an appropriate cartridge only, you can now re-enter the world of proper analogue reproduction.
The turntable platter is a finely balanced flywheel, precision machined in solid aluminium, and capped with a solid graphite record mat. The turntable bearing uses a hardened stainless steel shaft revolving in precision bored bushes above a hardened thrust pad.
The tonearm design is optimised for playing 12" vinyl discs. Cartridge output is conveyed via two twisted pairs of Teflon-insulated silver-plated copper wire terminated via miniature gold connectors to insulated RCA phono sockets allowing connections to be made in unbalanced or quasi-balanced modes.
Each machine is a sculpture in its own right, designed and entirely hand-built for the 21st century. Not a mass-market product, nor the genesis of corporate desire, but a simple and beautiful object, functional and dependable, a machine with real character and personality.
Made principally from aluminium, graphite and stainless steel alloys, the record player is finished in a satin lustre and supplied, together with all necessary equipment and operating instructions, in a strong foam-lined package designed to withstand acute freight handling.
Provision of an ideal support is of major importance, as is finding and properly installing a well-matched cartridge. Then, and only then, can you sit back and bask in the analogue domain.
Specifications:
Packaged size: | 480×480×320 WDH mm. |
Packaged mass: | 15 kg. |
Player requires area: | 500×350×125 WDH mm. |
Player nett mass: | 12 kg. |
Platter speeds: | 33 & 45 r.p.m. |
Supply voltage: | +12 V.d.c. |
Power consumption: | ~15 mA. |
Tonearm effective length: | 233.2 mm. |
Stylus overhang: | 17.8 mm. |
Stylus offset angle: | 23.6 deg. |
